Ulysses Light Mover

$1,398.00

The Ulysses is also a rack and pinion bridge type mover with heavier duty tracks than the Hercules on 96″ track base.

It can carry up to a 20′ lamp mounting bar (strut channel) and can easily carry up to 6 air cooled lamps and tow up to four Tandem Trolleys each with 6 lamps too provided the gross weight per carrier does not exceed 350# and does not require more than 11# of force to move your train of Tandem Trolleys.

Add Tandem Trolleys and Blank Rail Extensions to illuminate an entire warehouse of plants if you wish. The base kit comes with 8′ tracks. You supply your own strut channel for lamp mounting.

Description

The LARGEST light mover specifically

designed for illuminating WAREHOUSE operations:

ONE MOVER CAN CARRY UP TO SIX LAMPS ON A 20′ LAMP BAR!

ADD A ULYSSES TANDEM TROLLEY AND MAKE THAT 12 LAMPS OR A SECOND ULYSSES TANDEM TROLLEY FOR 18 AND SO ON!

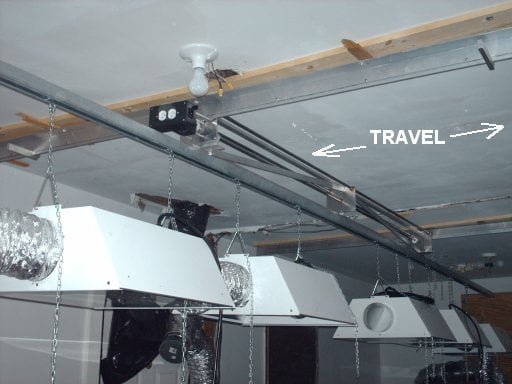

Designed with the same skills that went into the standard AgraMover, this RACK AND PINION driven device works like a bridge crane.

Two 8 foot trolleys eight feet apart to carry up to a 20′ strut channel that can accommodate up to six 1000 watt lamps and have plenty of strength and power to hook up your cooling tubes provided that the gross weight does not exceed 350# [159 kg].

When adding Tandem Trolleys, the amount that it takes to pull them must not exceed 11# of force for the entire train.







A BRIEF HISTORY OF THE ULYSSES



A customer purchased a Hercules and ignored our specifications that it was designed to carry up to 4 lamps, and chose instead to carry 6, hook up cooling tubes, and haul them all on a 20′ strut channel.



He telephoned when he was having problems and invited us to come out to take a look. While we were impressed by how well the Hercules was performing having exceeded by far all our expectations, it was nevertheless inadequate for the demands he was putting on it.

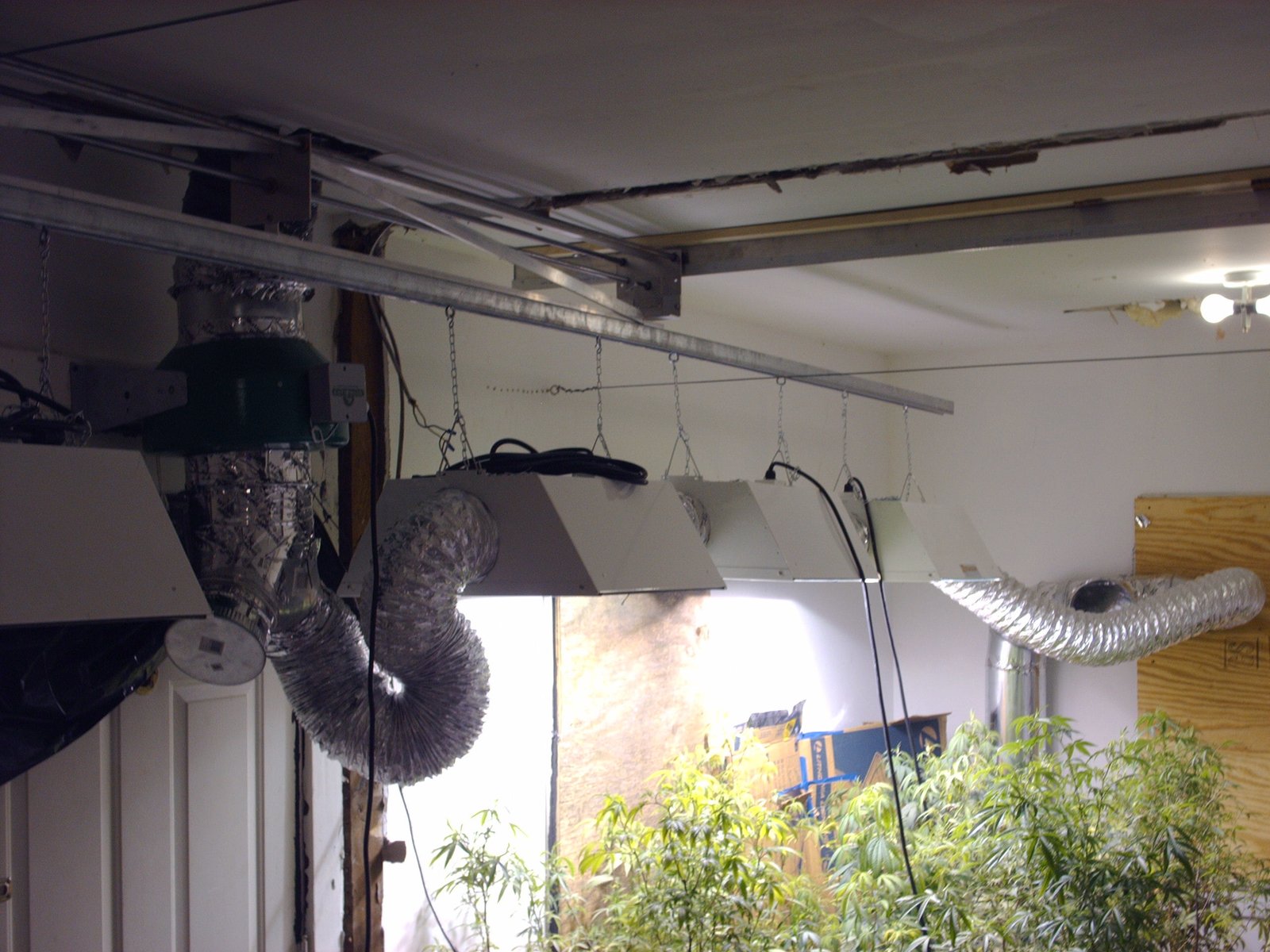

So we designed the Ulysses and used his grow room for testing our prototype.  He then added tandem trolleys that were powered by the motorized carrier shown.




Features:

* 210 in. oz. synchronous gear-motor (the most powerful used on any light mover to date)

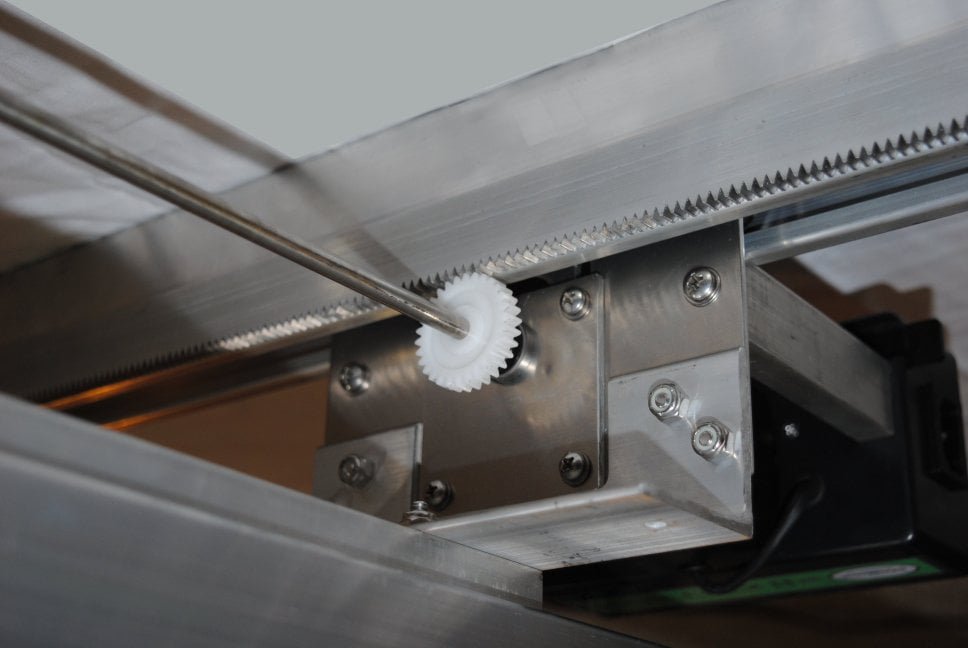

* Synchronized rack and pinion propulsion

* Adjustable travel stops

* Adjustable dwell timer for end of stroke pause

* Aircraft aluminum and stainless steel construction

* Heavier duty rails than the Hercules

* Lamp mounting bar is a 1-5/8″ square strut channel included in kit in which many standard off the shelf brackets and attachments are readily available for to satisfy your creative minds.

Included in the kit is enough hardware for mounting 6 HID lamps.

(Due to the length of the strut channel you may wish to use, we do not include them in the kit)

* 12′ detachable power cord

* Electrical outlet that travels with the unit for plugging in accessories such as fans (or a standard AgraMover carrier)

* Replaceable nylon pinions and wheels

* Sealed bearings (no bushings)





Please allow one week for this item to ship.

It will arrive in two parcels, one 8′ shipping tube, and one 8 X 8 X 102 carton.

You may also purchase blank extension rails and Tandem Trolleys to add more length to your grow area.

They’re sold in 4′, 6′, and 8′ lengths.

They are designed to run ULYSSES Tandem Trolleys to be towed by your Ulysses.

We call them “blank” extensions because they do not have gear teeth cut into the tracks like the master Ulysses does.

This saves you money when your grow room grows.

Additional information

Weight 80.0 lbs
Dimensions 96 x 9 x 7 in
